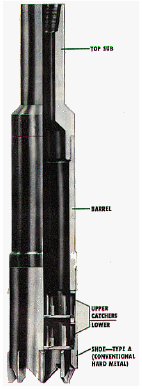

Core-Type Junk Basket The Crossover core-type junk basket is a rugged junk fishing device, using either a mill shoe or flat bottom type shoe in conjunction with two sets of free revolving finger type catchers. The catchers are of rivetless construction. They may be easily redressed on the job, eliminating the necessity of returning them to the shop for replacement. The upper catcher is designed to effectively break the core which is cut by the shoe. The fingers extend only halfway to the center. The lower catcher has alternately short and long fingers which extend almost to the center of the tool to effectively collect and retain odd pieces of junk or cores. Alternate mill shoes available are the Type B and Type C. The Type B is similar to Type A in design, but with Sintered Tungsten Carbide dressing. The Type C is flat bottomed and dressed with Sintered Tungsten Carbide. Other shoe types are available. Operation of the Crossover junk basket is simple, requiring only slow rotation and circulating fluid, to retrieve junk.
Hole Size (in) Barrel OD (in) Max OD of Fish (in) Head Size Range (in) Optional Magnet Insert Weight 3 ¾ - 4 ⅛ 3 ⅝ 2 23/32 3 ¾ - 4 9 4 ¼ - 5 4 3 ⅜ 4 ¼ - 4 ⅞ 21 5 ⅛ - 5 ½ 4 ½ 3 23/32 5 ⅛ - 5 ⅞ 23 5 ⅝ - 6 5 ⅜ 4 1/10 5 ⅝ - 5 ⅞ 32 6 ⅝ - 7 6 ¼ 4 13/16 6 ⅝ - 6 ⅞ 57 7 ¼ - 8 6 ⅞ 5 15/16 7 ¼ - 7 ⅞ 65 8 ¼ - 9 8 ⅛ 6 3/16 8 ¼ - 8 ⅞ 76 9 ¼ - 10 8 ⅞ 7 3/16 9 ¼ - 9 ⅞ 115 10 ¼ - 11 9 ⅞ 8 1/16 10 ¼ - 10 ⅞ 167 11 ¼ - 12 ½ 11 9 11 ¼ - 12 ⅜ 251 12 ⅝ - 15 11 ⅞ 10 12 ⅝ - 14 ⅝ 334 16 - 20 15 12 16 - 19 ⅝ 553
