Swivel with 2" 1502 Side Outlet

swivel side outletCrossover Side-Entry Swivels are manufactured from AISI 4145. They typically have a rotary shouldered thread on top and bottom with a hammer union thread on the side. Crossover will manufacture to customer's needs. They are rated for 10,000 psi. and can be rotated up to ??? rpm's.

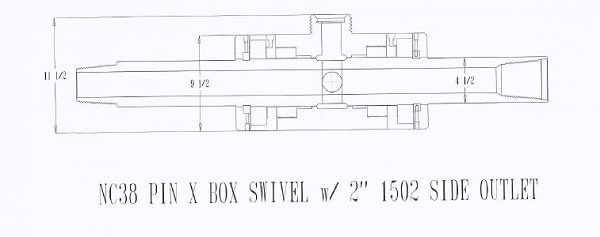

Drawing


swivel side outlet diagram

Parts List


1. End Cover, 2 each
2. Split Ring, 2 each
3. Bearing, 2 each
4. Bearing Holder, 2 each NOTE: 1 may be Left-Handed depending on date of manufacture
5. Barrell, 1 each NOTE: 1 may be Left-Handed depending on date of manufacture
6. V-packing, 2 sets
7. Back-up Ring, 2 each
8. Grease fitting, 2 each
9. Bolt, 4 each (to hold split ring)

For Proper Operation: Wash Thoroughly with Water after each use and Grease Bearing Appropriately while in use
